Welcome to the Automotive Grade Linux (AGL) documentation

参考

AGL 是啥？

AGL是一个开源协作项目，它将汽车制造商、供应商和技术公司聚集在一起，旨在为汽车应用程序构建基于Linux的开源软件平台，这些平台可以作为事实上的行业标准。

AGL包含车辆中的所有软件：信息娱乐、仪表盘、抬头显示器（HUB）、远程信息处理、联网汽车、高级驾驶员辅助系统（ADAS）、功能安全和自动驾驶。

AGL是一个Linux基金会项目，其目标如下：

为整个行业构建一个单一平台
开发70～80%的生产项目
通过结合最好的开源项目减少碎片化
统一一个平台开发一个由开发人员、供应商和专业知识组成的生态系统

使用不同版本的AGL预编译镜像

参考

从源码开始编译构建

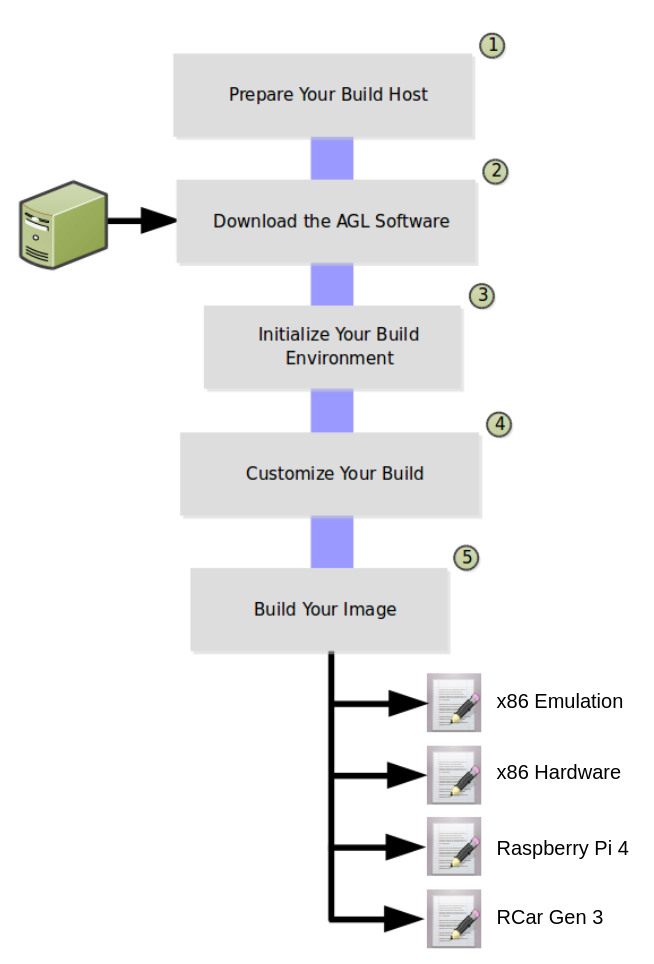

image-developer-workflow

环境准备

**支持Yocto编译环境，BitBake**

Linux 机器：参考
至少100G硬盘空间
常用工具与版本：Git >= 1.8.3.1、Tar >= 1.27、Python >= 3.4.0

代码下载

参考

定义顶级目录

export AGL_TOP=$HOME/AGL
echo 'export AGL_TOP=$HOME/AGL' >> $HOME/.bashrc
mkdir -p $AGL_TOP

配置repo

mkdir -p $HOME/bin
export PATH=$HOME/bin:$PATH
echo 'export PATH=$HOME/bin:$PATH' >> $HOME/.bashrc
curl https://storage.googleapis.com/git-repo-downloads/repo > $HOME/bin/repo
chmod a+x $HOME/bin/repo

源码下载

cd $AGL_TOP
mkdir <<branch name>>
cd <<branch name>>
repo init -b <<branch name>> -u https://gerrit.automotivelinux.org/gerrit/AGL/AGL-repo
repo sync

代码目录结构

$ tree -L 1
.
├── bsp
├── external
├── meta-agl
├── meta-agl-cluster-demo
├── meta-agl-demo
├── meta-agl-devel
├── meta-agl-extra
└── meta-agl-telematics-demo

初始化编译环境

`aglsetup.sh` Script

$AGL_TOP/octopus/meta-agl/scripts/aglsetup.sh

该脚本接受许多选项，这些选项允许您定义构建参数，例如目标硬件（即机器）、构建目录等。

AGL Machines (board support)

通过-m参数选择目标平台。MACHINE存在位置meta-agl/templates/machine/*,这里也是添加新板的位置。

Example:

Available machines:
   [meta-agl]
       bbe
       beaglebone
       cubox-i
       ebisu
       generic-arm64
       h3-salvator-x
       h3ulcb
       h3ulcb-kf
       h3ulcb-nogfx
       imx6qdlsabreauto
       imx8mq-evk
       imx8mq-evk-viv
       intel-corei7-64
       j721e-evm
       m3-salvator-x
       m3ulcb
       m3ulcb-kf
       m3ulcb-nogfx
       qemuarm
       qemuarm64
       qemuriscv64
     * qemux86-64
       raspberrypi4
       virtio-aarch64

AGL Features

你希望镜像中包含哪些AGL Features。

Example:

Available features:
   [meta-agl]
       agl-all-features :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework  agl-netboot )
       agl-app-framework
       agl-archiver
       agl-buildstats
       agl-ci :( agl-create-spdx )
       agl-ci-change-features :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework  agl-devel  agl-package-management  agl-netboot  agl-pipewire  agl-buildstats  agl-ptest )
       agl-ci-change-features-nogfx :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework  agl-devel  agl-package-management  agl-netboot  agl-pipewire  agl-buildstats  agl-ptest )
       agl-ci-snapshot-features :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework  agl-devel  agl-package-management  agl-netboot  agl-archiver  agl-pipewire  agl-buildstats  agl-ptest )
       agl-ci-snapshot-features-nogfx :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework  agl-devel  agl-package-management  agl-netboot  agl-archiver  agl-pipewire  agl-buildstats  agl-ptest )
       agl-create-spdx
       agl-devel :( agl-package-management )
       agl-fossdriver
       agl-localdev
       agl-netboot
       agl-package-management
       agl-pipewire
       agl-ptest
       agl-refhw-h3
       agl-selinux
       agl-virt
       agl-virt-guest-xen
       agl-virt-xen :( agl-virt )
       agl-weston-remoting :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework )
   [meta-agl-demo]
       agl-container-guest-demo :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework  agl-drm-lease )
       agl-demo :( agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework )
       agl-demo-cluster-support :( agl-weston-remoting  agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework )
       agl-demo-preload
       agl-kvm :( agl-demo  agl-pipewire  agl-app-framework  agl-selinux  agl-flutter  agl-pipewire  agl-app-framework )
   [meta-agl-devel]
       agl-basesystem
       agl-cef
       agl-drm-lease
       agl-egvirt
       agl-flutter :( agl-pipewire  agl-app-framework )
       agl-ic-container :( agl-drm-lease  agl-pipewire  agl-selinux )
       agl-jailhouse
       agl-offline-voice-agent
       agl-test :( agl-ptest  agl-devel  agl-package-management )

AGL 编译命令示例

$ source meta-agl/scripts/aglsetup.sh -m qemux86-64 -b qemux86-64 agl-demo agl-devel
aglsetup.sh: Starting
Generating configuration files:
   Build dir: /home/scottrif/workspace_agl/build
   Machine: qemux86-64
   Features: agl-appfw-smack agl-demo agl-devel
   Running /home/scottrif/workspace_agl/poky/oe-init-build-env
   Templates dir: /home/scottrif/workspace_agl/meta-agl/templates/base
   Config: /home/scottrif/workspace_agl/build/conf/bblayers.conf
   Config: /home/scottrif/workspace_agl/build/conf/local.conf
   Setup script: /home/scottrif/workspace_agl/build/conf/setup.sh
   Executing setup script ... --- beginning of setup script
 fragment /home/scottrif/workspace_agl/meta-agl/templates/base/01_setup_EULAfunc.sh
 fragment /home/scottrif/workspace_agl/meta-agl/templates/base/99_setup_EULAconf.sh
 end of setup script
OK
Generating setup file: /home/scottrif/workspace_agl/build/agl-init-build-env ... OK
aglsetup.sh: Done
 Shell environment set up for builds.
You can now run 'bitbake target'
Common targets are:
  - meta-agl:          (core system)
    agl-image-minimal
    agl-image-minimal-qa

    agl-image-ivi
    agl-image-ivi-qa
    agl-image-ivi-crosssdk

    agl-image-weston

  - meta-agl-demo:     (demo with UI)
    agl-demo-platform  (* default demo target)
    agl-demo-platform-qa
    agl-demo-platform-crosssdk
    agl-demo-platform-html5

编译目录：默认$AGL_TOP/<release-branch-name>/build
生成主要配置文件：local.conf ，bblayers.conf，编译目录的conf下面

自定义编译参数

修改$AGL_TOP/<release-branch-name>/<build-dir>/conf/local.conf文件中的编译构建参数。同Yocto项目。

Capturing Build History

INHERIT += "buildhistory"
BUILDHISTORY_COMMIT = "1"

Deleting Temporary Workspace

INHERIT += "rm_work"

Pointing at Shared State Cache Locations

参考

SSTATE_DIR = "${AGL_TOP}/sstate-cache"

SSTATE_MIRRORS ?= "\
    file://.* http://someserver.tld/share/sstate/PATH;downloadfilename=PATH \n \
    file://.* file:///some/local/dir/sstate/PATH"

Preserving the Download Directory

默认的下载路径是downloads.

DL_DIR = "${AGL_TOP}/downloads"

Using a Shared State (sstate) Mirror

参考

SSTATE_MIRRORS_append = " file://.* https://download.automotivelinux.org/sstate-mirror/octopus/${DEFAULTTUNE}/PATH \n "

Common Settings using Symbolic Link with site.conf

Example:

$ echo "# reuse download directories" >> $AGL_TOP/site.conf
$ echo "DL_DIR = \"$HOME/downloads/\"" >> $AGL_TOP/site.conf
$ echo "SSTATE_DIR = \"$AGL_TOP/sstate-cache/\"" >> $AGL_TOP/site.conf
$ cd $AGL_TOP/octopus/qemux86-64/
$ ln -sf $AGL_TOP/site.conf conf/

In General;
$ cd $AGL_TOP/<release-branch-name>/<build-dir>/
$ ln -sf $AGL_TOP/site.conf conf/

编译部署

bitbake编译

Example：agl-demo-platform

$time bitbake agl-demo-platform

$IMAGE_NAME和路径

<build_directory>/tmp/deploy/images/qemux86-64/agl-demo-platform-qemux86-64.vmdk.xz

$export IMAGE_NAME=agl-demo-platform-qemux86-64.vmdk.xz

部署

Example:

$ source $AGL_TOP/octopus/qemux86-64/agl-init-build-env

$ runqemu tmp/deploy/images/qemux86-64/agl-demo-platform-qemux86-64.qemuboot.conf kvm serialstdio slirp publicvnc audio
